Equipment parameter information
Main motor power |
7.5kw |
notes |
Traveling motor power |
0.5kw |
|
Equipment voltage |
380v 50Hz |
customizable |
Thickness processing range |
0.8-100mm |
customizable |
Maximum machining widt |
600mm |
Polishing length is not limited |
Belt size |
1650*600mm*2 |
Can be equipped with a wire drawing roller |
Overall dimensions of the equipment |
135*100*180cm |
Package size 1370*1020*1800mm |
Net weight of equipment |
495kg |
The gross weight should be 525KG |
lift platform |
Electric lifting |
|

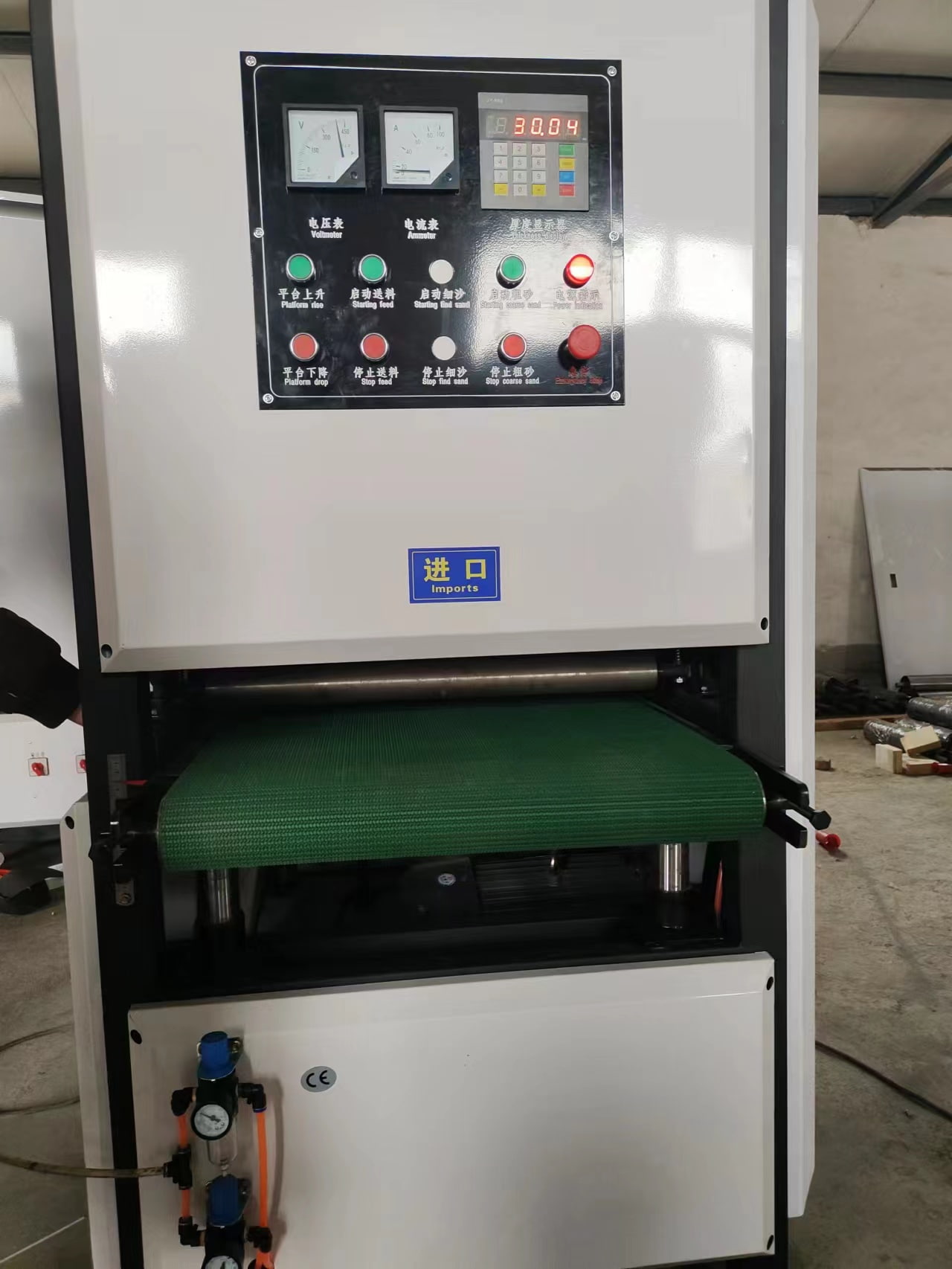

Overall equipment control |
Panel mounted distribution box control, one click start |
