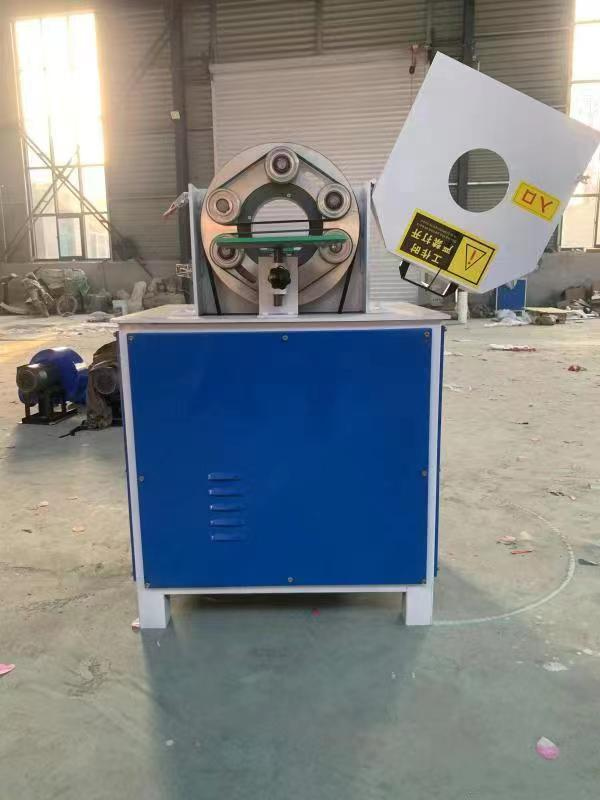

Bent Tube Polishing Machine
Select this machine for polishing tubes that are already bent within the listed diameter range; provide the bend radius and a workpiece drawing so clearance and process suitability can be confirmed.
- Overview
- Model Selection Guidance
- Recommended Products
NAME |
Bending pipe polishing machine |
Abrasive belt dimensions |
762*25mm |
voltage |
Three phase 380V, single phase 220V, other voltages can be customized |
Abrasive belt motor power |
3.0 KW |
Machining diameter |
3-80mm adjustable Other sizes can be customized The maximum diameter does not exceed 150 mm |
Spindle speed |
Variable frequency speed regulation |
net weight/gross weight |
145KG/165KG |
Overall dimensions(L*W*H) |
79*65*122 |
Packaging method |
Plywood wooden cases |
Compare this model with metal polishing and belt finishing machine range and 4–80 mm Tube and Bar Polishing Machine.
For a technical quote, send the material, workpiece shape and dimensions, starting surface condition, target operation and finish, required throughput, preferred dry or wet process, local power supply, and destination country.
