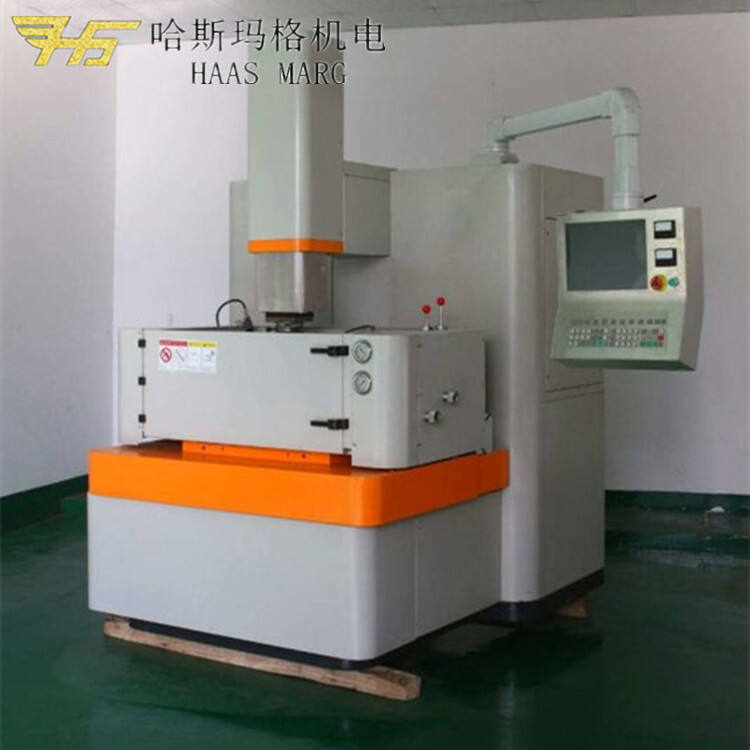

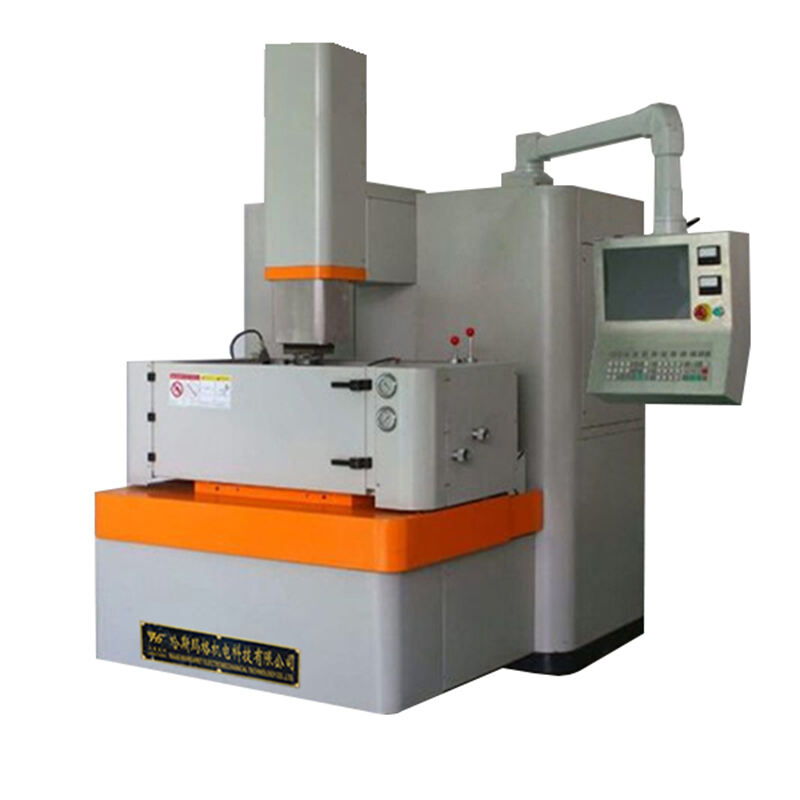

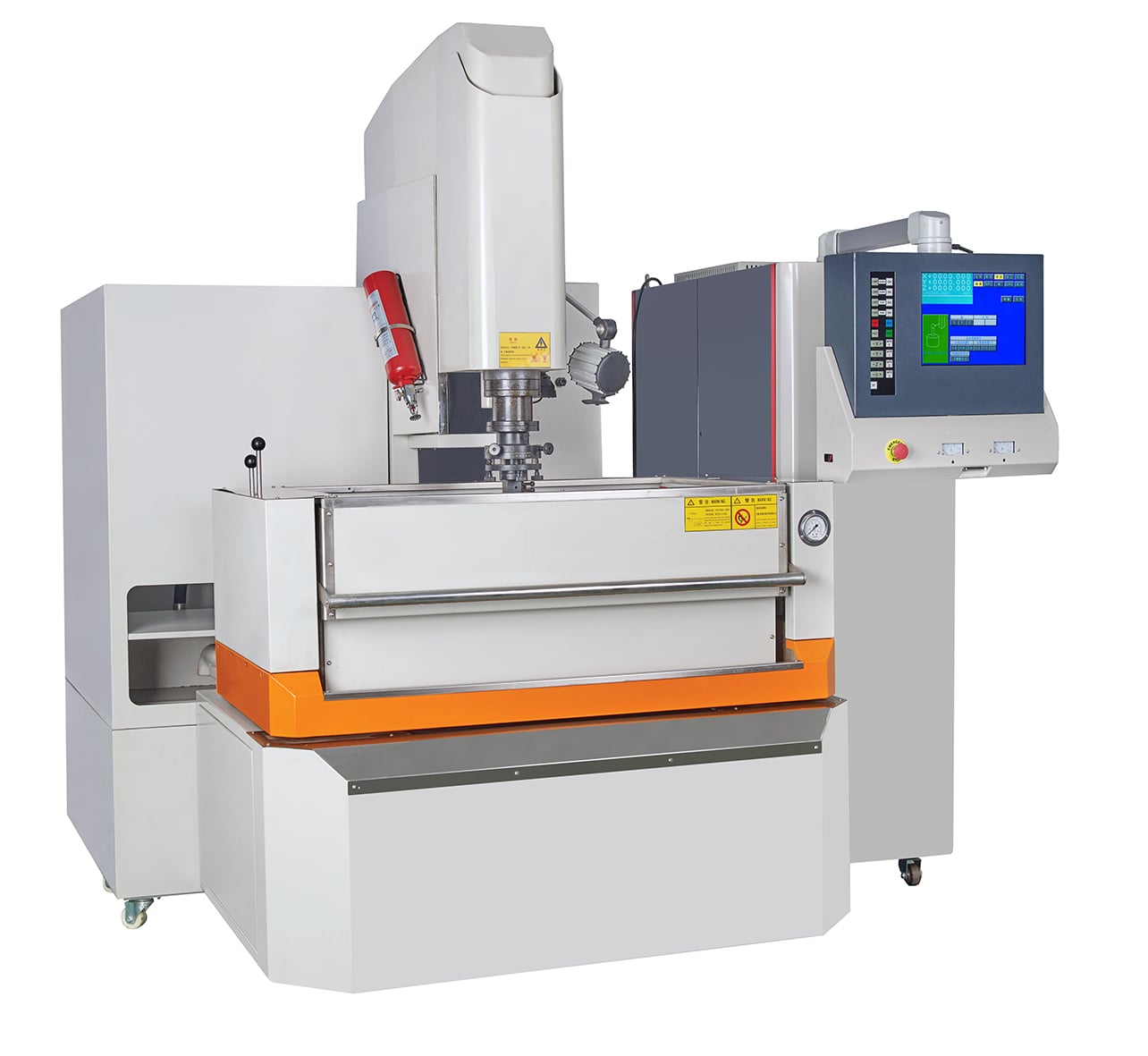

Technical Specification

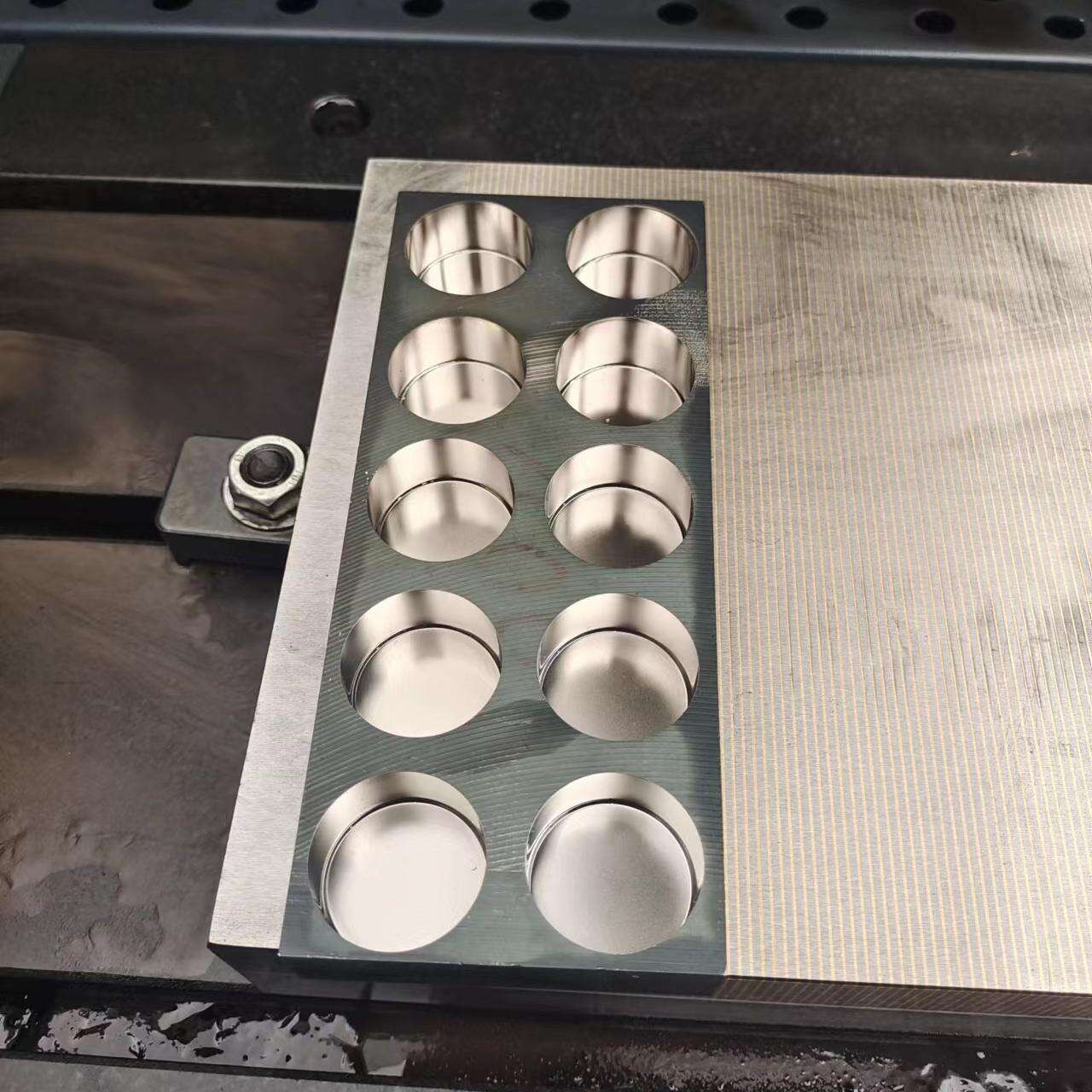

| Name | CNC300 | CNC450 | CNC500 | CNC600 | CNC800 | CNC1000 | CNC1200 |
| Working table dimension (L×W) | 600×400 mm | 600×400 mm | 800×500 mm | 900×500 mm | 1050×600 mm | 1380×800 mm | 1380×800 mm |
| X×Y×Z axis travel | 300×212×272 mm | 452×300×272 mm | 500×400×300 mm | 600×400×350 mm | 800×500×400 mm | 1000×600×400 mm | 1200×600×400 mm |
| Working tank dimension (L×W×H) | 994×604×405 mm | 1090×630×435 mm | 1340×850×500 mm | 1600×980×520 mm | 1800×1000×600 mm | 1800×1240×570 mm | 1800×1240×570 mm |
| Highest level of working liquid | 250 mm | 340 mm | 350 mm | 350 mm | 460 mm | 350 mm | 350 mm |
| End of the spindle to the working table | 530 mm | 580 mm | 700 mm | 720 mm | 900 mm | 950 mm | 950 mm |
| Capacity of the oil tank | 400 L | 600 L | 600 L | 750 L | 1500 L | 1800 L | 1800 L |
| Max weight of the electrode | 25 kg | 30 kg | 80 kg | 150 kg | 150 kg | 200 kg | 200 kg |
| Max weight of the workpiece | 400 kg | 500 kg | 1800 kg | 2000 kg | 2500 kg | 4000 kg | 4000 kg |
| Positioning accuracy | 5 µm | 5 µm | X/Y/Z: 5 µm | X/Y/Z: 5 µm | X/Y/Z: 5 µm | X/Y/Z: 7 µm/300 mm | X/Y/Z: 7 µm/300 mm |
| Repeat positioning accuracy | 3 µm | 3 µm | X/Y/Z: 3 µm | X/Y/Z: 3 µm | X/Y/Z: 3 µm | X/Y/Z: 3 µm | X/Y/Z: 3 µm |
| Weight of machine | 2300 kg | 2800 kg | 3300 kg | 3500 kg | 4800 kg | 5800 kg | 5800 kg |
| Dimension of machine | 2040×2119×2240 mm | 2590×1992×2355 mm | 2540×2487×2480 mm | 2800×2730×2500 mm | 3087×3187×2800 mm | 3087×3187×2800 mm | 3087×3187×2800 mm |
| General input | 9 kVA (50 A) | 9 kVA (50 A) | 9 kVA (50 A) | 9 kVA (50 A) | 9 kVA (50 A) | 9 kVA (50 A) | 9 kVA (50 A) |
| Input power | 3 Phase 380 V / 50 Hz | 3 Phase 380 V / 50 Hz | 3 Phase 380 V / 50 Hz | 3 Phase 380 V / 50 Hz | 3 Phase 380 V / 50 Hz | 3 Phase 380 V / 50 Hz | 3 Phase 380 V / 50 Hz |
| CNC power generator | Windows 7 based | Windows 7 based | Windows 7 based | Windows 7 based | Windows 7 based | Windows 7 based | Windows 7 based |
| Max working current | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A | 50 A |
| Best surface finish | Ra ≤ 0.08 µm | Ra ≤ 0.08 µm | Ra ≤ 0.2 µm | Ra ≤ 0.2 µm | Ra ≤ 0.2 µm | Ra ≤ 0.2 µm | Ra ≤ 0.2 µm |
| Min. wear of the electrode | ≤ 0.05 % | ≤ 0.05 % | ≤ 0.1 % | ≤ 0.1 % | ≤ 0.1 % | ≤ 0.1 % | ≤ 0.1 % |
| Max machining efficiency | ≥ 500 mm³/min | ≥ 500 mm³/min | ≥ 500 mm³/min | ≥ 500 mm³/min | ≥ 500 mm³/min | ≥ 500 mm³/min | ≥ 500 mm³/min |
| Interpolation methods | Straight line, arc, helix | Straight line, arc, helix | Straight line, arc, helix | Straight line, arc, helix | Straight line, arc, helix | Straight line, arc, helix | Straight line, arc, helix |
| Accuracy compensation options | Step-pitch & gap compensation | Step-pitch & gap comp. | Step-pitch & gap comp. | Step-pitch & gap comp. | Step-pitch & gap comp. | Step-pitch & gap comp. | Step-pitch & gap comp. |
| Min. drive unit / Min command unit | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm |
| Outer dimension of controller | 1250×550×1800 mm | 1250×550×1800 mm | 1250×550×1800 mm | 1250×550×1800 mm | 1250×550×1800 mm | 1250×550×1800 mm | 1250×550×1800 mm |
| Display | 15-inch touch screen | 15-inch touch screen | 15-inch touch screen | 15-inch touch screen | 15-inch touch screen | 15-inch touch screen | 15-inch touch screen |
