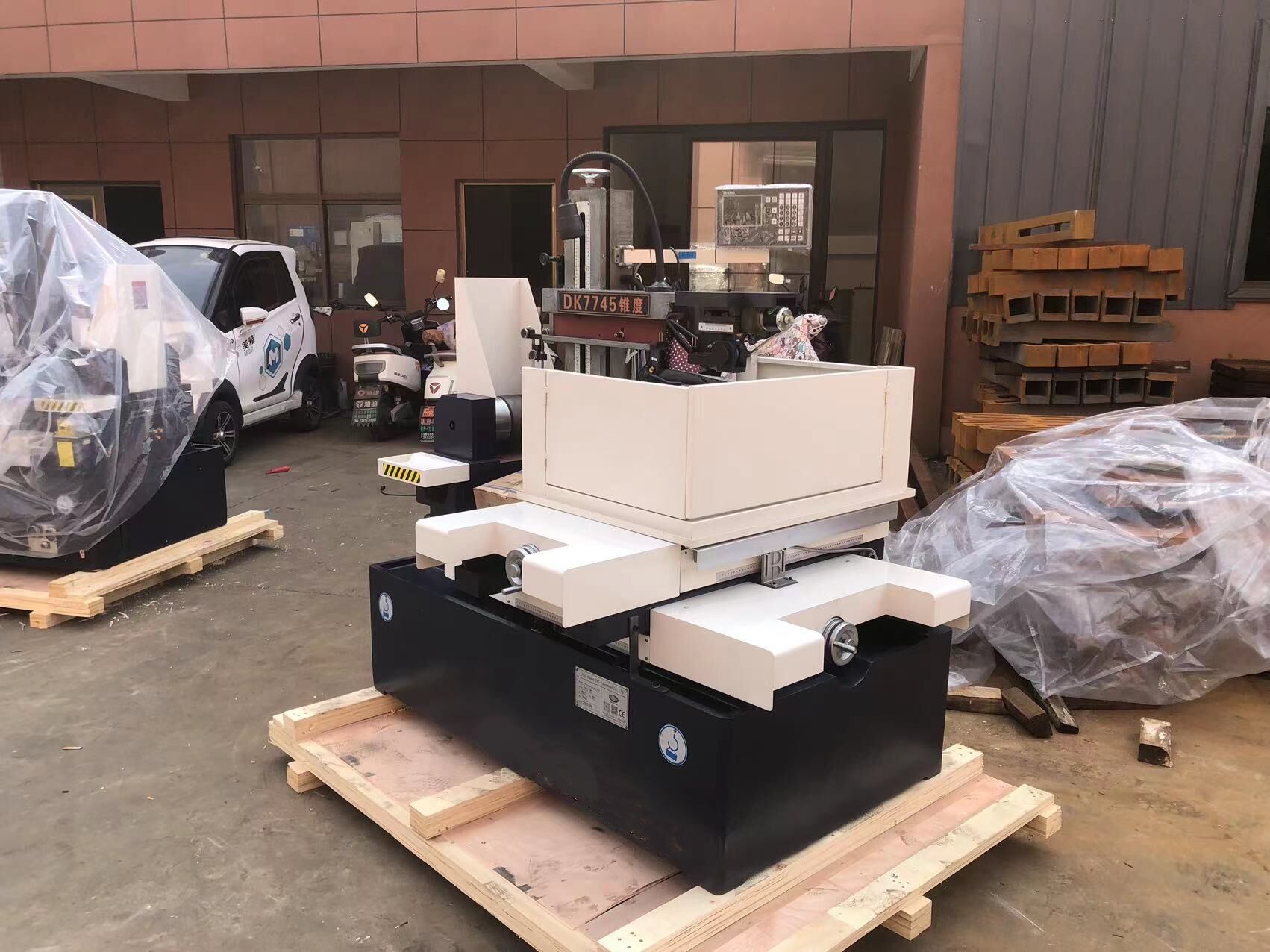

cnc wire edm machine

CNC Wire EDM (Electrical Discharge Machining) is a sophisticated manufacturing process that uses electrical discharges to cut through conductive materials with remarkable precision. The machine employs a thin wire electrode, typically made of brass or copper, which moves along a computer-controlled path to create complex shapes and intricate patterns. Operating through a dielectric fluid, the wire never directly contacts the workpiece, instead creating controlled electrical sparks that erode the material to achieve the desired cut. This advanced technology allows for cutting tolerances as fine as 0.0001 inches and can process materials regardless of their hardness, making it particularly valuable for working with hardened steel, titanium, and other challenging metals. The CNC wire EDM machine excels in producing components with complex geometries, sharp internal corners, and detailed profiles that would be impossible to achieve with conventional cutting methods. The process is fully automated, ensuring consistent quality across multiple parts while minimizing operator intervention. Modern CNC wire EDM machines feature sophisticated control systems that monitor and adjust cutting parameters in real-time, maintaining optimal performance throughout the machining process.

New Product Releases

The CNC wire EDM machine offers numerous compelling advantages that make it an invaluable asset in modern manufacturing. First, its non-contact cutting process eliminates mechanical stress on the workpiece, preventing material deformation and ensuring exceptional accuracy in the final product. The technology enables the creation of parts with complex geometries and tight tolerances that would be impossible or prohibitively expensive to produce using traditional machining methods. The automated nature of CNC wire EDM significantly reduces labor costs while maintaining consistent quality across production runs. The machine's ability to cut hardened materials eliminates the need for post-heat treatment machining, saving both time and resources in the manufacturing process. Another significant advantage is the superior surface finish achieved without additional processing, reducing or eliminating the need for secondary operations. The process generates minimal waste and can operate continuously without operator intervention, maximizing productivity and efficiency. The technology's precision cutting capabilities result in minimal material loss, making it cost-effective for processing expensive materials. Additionally, the wire EDM process can cut multiple parts simultaneously from stacked materials, further increasing production efficiency. The machine's programmable nature allows for quick adjustments and modifications to part designs without requiring new tooling, providing excellent flexibility in manufacturing operations. Environmental benefits include the use of recyclable wire electrodes and filtered dielectric fluid, contributing to sustainable manufacturing practices.

Practical Tips

How Does Diamond Cutting Equipment Handle Hard Materials?

28

Aug

How Does Diamond Cutting Equipment Handle Hard Materials?

Mastering the Art of Precision: Modern Diamond Cutting Technology The world of industrial cutting has been revolutionized by , representing the pinnacle of precision engineering and material processing. These sophisticated machines harness the except...
View More
How Does an EDM Drilling Machine Work in High-Precision Tasks?

28

Aug

How Does an EDM Drilling Machine Work in High-Precision Tasks?

Understanding the Revolutionary Impact of EDM Technology in Modern Manufacturing The evolution of manufacturing technology has brought forth remarkable innovations, and the EDM drilling machine stands as a testament to precision engineering excellenc...
View More
How Does EDM Drilling Handle Micro-Hole Creation?

28

Aug

How Does EDM Drilling Handle Micro-Hole Creation?

Mastering Precision Engineering Through Advanced EDM Drilling Technology The manufacturing industry has witnessed remarkable advancements in precision engineering, with emerging as a cornerstone technology for creating microscopic holes with unprece...
View More
What Materials Can Be Processed with EDM Cutting Wire?

28

Aug

What Materials Can Be Processed with EDM Cutting Wire?

Understanding the Versatility of Wire EDM Material Processing (EDM) with cutting wire has revolutionized precision manufacturing across numerous industries. This advanced machining process utilizes electrically charged wire to cut through conductive ...
View More

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

cnc wire edm machine

Unmatched Precision and Accuracy

Unmatched Precision and Accuracy

The CNC wire EDM machine stands out for its extraordinary precision capabilities, consistently achieving tolerances as tight as 0.0001 inches. This remarkable accuracy is made possible through advanced servo control systems that continuously monitor and adjust the wire position and cutting parameters. The machine's sophisticated spark gap control ensures uniform material removal, resulting in exceptional surface finish quality with roughness values as low as 0.1 Ra. This level of precision is maintained even when cutting complex shapes or working with challenging materials, making it ideal for producing high-precision components for aerospace, medical, and defense applications. The machine's ability to maintain dimensional accuracy throughout long production runs ensures consistency across all manufactured parts.
Versatile Material Processing Capabilities

Versatile Material Processing Capabilities

One of the most significant advantages of the CNC wire EDM machine is its ability to process any electrically conductive material, regardless of hardness. This versatility makes it invaluable for working with super alloys, hardened steel, titanium, carbide, and other difficult-to-machine materials. The non-contact cutting process eliminates the tool wear issues common with traditional machining methods, ensuring consistent performance even when working with the hardest materials. The machine can efficiently cut through thick materials while maintaining precise tolerances and achieving clean, straight cuts with minimal taper. This capability is particularly valuable in tool and die making, where complex shapes must be cut from hardened materials with extreme precision.
Advanced Automation and Productivity Features

Advanced Automation and Productivity Features

Modern CNC wire EDM machines incorporate sophisticated automation features that maximize productivity and efficiency. The automated wire threading system enables continuous operation, allowing the machine to run unattended for extended periods. Integrated monitoring systems continuously track cutting parameters and make real-time adjustments to optimize performance and prevent wire breaks. The machines feature advanced CAM software integration, allowing for seamless translation of complex designs into efficient cutting paths. Multi-axis capability enables the creation of complex tapered and shaped cuts in a single setup, reducing production time and improving accuracy. The ability to stack multiple workpieces and cut them simultaneously significantly increases production efficiency, while automated part programs can be stored and recalled for quick setup of repeat jobs.
